      Products

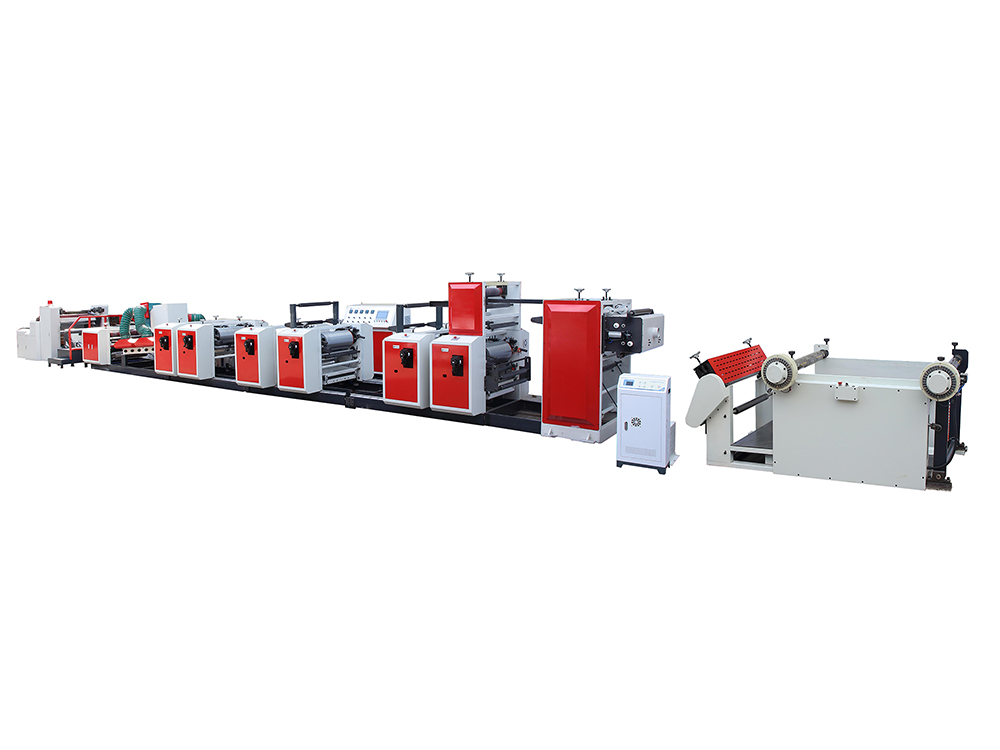

      Unit type flexographic printing machine without roller replacement

      Purpose:



      It is used for multi-variety printing of paper, PP woven cloth and paper-plastic composite coiled materials. The printing range is wide and there is no need to replace the printing roller. With time saving, labor saving and high efficiency, it can automatically wind after printing.


      Performance and features:



      Automatic deviation correction, constant tension control, warning for replacement of materials, automatic replacement of materials without stopping the machine. It is also provided with the function of stopping in case of material shortage.

      The cast iron wallboard is the guarantee for stable operation of the machine.

      The color group is driven by a separate servo. The printing roller runs at a constant speed. The computer controls bag length and the cloth runs and is printed at variable speeds.

      The closed high-speed circulating oven is our exclusive design, providing guarantees for short-distance high-speed drying.

      The 8-inch winding air expansion shaft makes it convenient to work with the square bottom valve bag production equipment.

      It is suitable for multi-variety printing. There is no need to replace the printing roller. It is time saving and labor saving with good benefit.

      Compared with other products of our peers in the industry, our printing machine has higher registering speed, higher printing speed and achieves the best effect.


      Technical parameters:



      Maximum printing width

      600mm

      Printing length

      600-1200mm

      Registering precision

      ±2mm

      Printing color number

      4-8 colors

      Winding and unwinding diameter

      ≤1400mm

      Printing speed

      30-100m/min

      Single-color servo motor power

      1.8kw

      Outline dimensions

      19000×3700×1900mm



      Configuration list:



      Main motor/servo

      Delta

      PLC/motion controller

      Delta

      Touch screen

      Weinview

      Low voltage electric appliance

      Schneider

      Switching power supply

      Mean Well

      Bearing

      Zhejiang Renben

      Wallboard material

      Cast iron


      Operating state appreciation
